Fine Foods Mixing Machine
FM 300–500

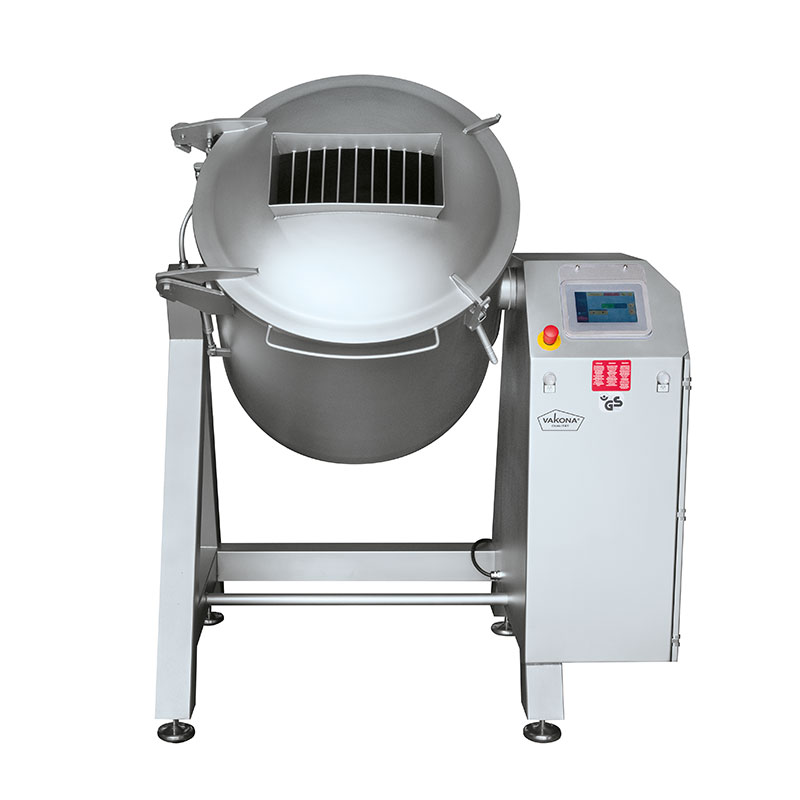

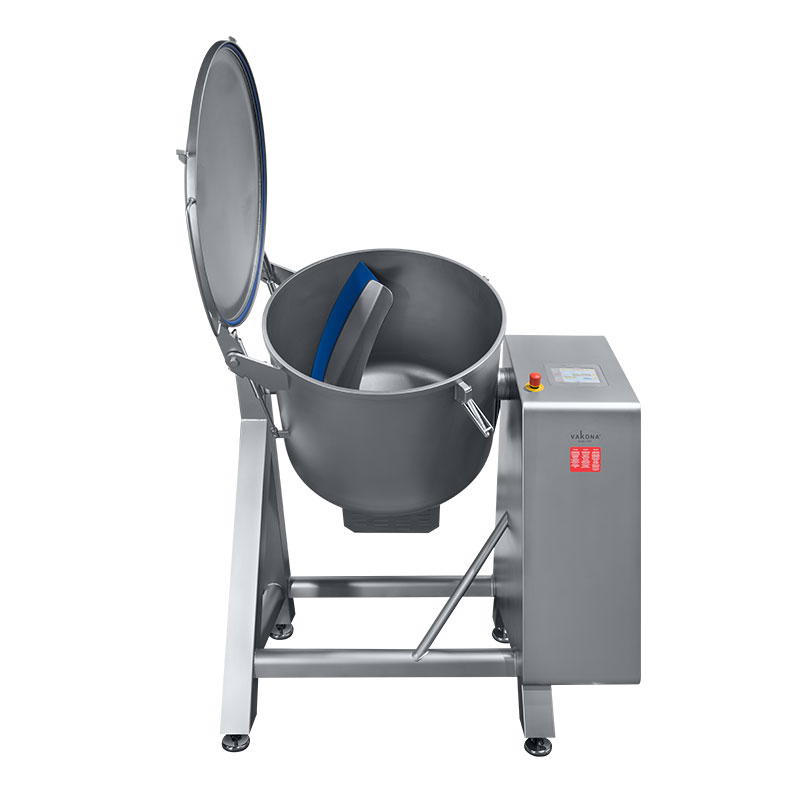

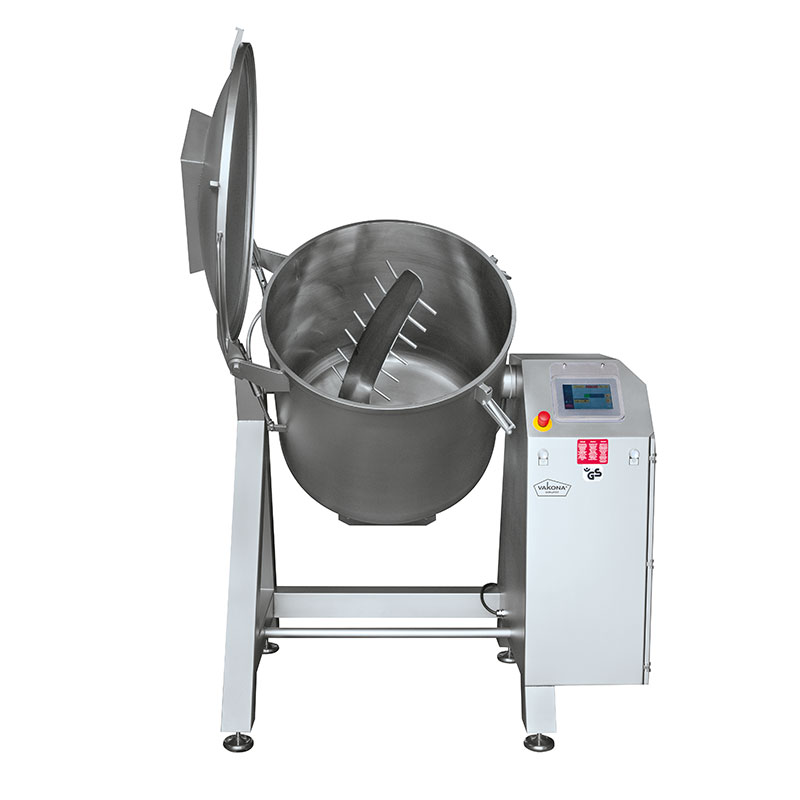

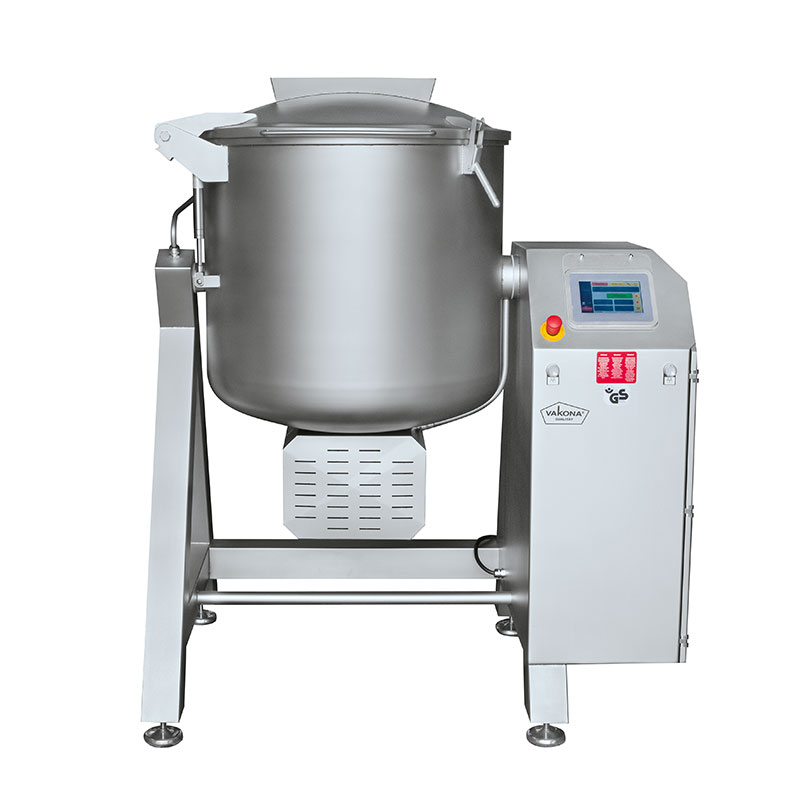

Fine Foods Mixing Machine FM 300-500
VAKONA Fine Foods Mixing Machines are designed for use in the production of delicatessen and fine foods. They are suitable for mixing and blending of all kind of food, for example salads, meat, fish, poultry, as well as the production of convenience products.
The machines captivate with a high user-friendliness, which is achieved by their easy operation and simple cleaning. A huge individualization of the machines is reached by a wide range of equipment options, in order to achieve the highest possible degree of customer-specific product optimization.
Standard equipment:
- Rotation speed of the arm variable adjustable
- Mixing arm incl. removable scraper with press button system
- Electrical tilting of the bowl
- Lid operation with operator assistance
Optional equipment:
- Computer control unit
- Touch screen control
- Automatic bowl tilting and positioning system
- Various filling system for additives
- Various unloading systems
- Tailor-made mixing arm systems, according to customer specifications
- Polished processing bowl
- Hydraulic loading system or mast type loading system for 200 litre loading trolleys
- Gear motor with variable adjustable speed
- Electrical lid operation
- Various designs
All components which come in contact with the product conform to FDA guidelines.
Capacity of the Fine Foods Mixing Machine FM
| Type | Volume | Capacity |
|---|---|---|
| FM 60 | 60 L | 5 – 40 kg |
| FM 100 | 100 L | 10 – 75 kg |
| FM 125 | 125 L | 10 – 90 kg |
| FM 150 | 150 L | 15 – 110 kg |
| FM 220 | 220 L | 25 – 160 kg |
| FM 250 | 250 L | 25 – 180 kg |
| FM 300 | 300 L | 25 – 210 kg |
| FM 350 | 350 L | 25 – 245 kg |
| FM 400 | 400 L | 25 – 280 kg |
| FM 500 | 500 L | 50 – 350 kg |
| FM 750 | 750 L | 50 – 525 kg |
| FM 850 | 850 L | 50 – 600 kg |
| FM 1200 | 1200 L | 100 – 950 kg |
| FM 1500 | 1500 L | 150 – 1150 kg |
| FM 1800 | 1800 L | 200 – 1350 kg |
| Due to the versatile optional equipment, the machine pictures shown may contain deviations. If you have questions, please contact us. | ||
dimensions / weight
Attention: All given data are guide values, depending on the product. Due to the high versatility of optional equipment and modification of the VAKONA fine foods mixing machines, please contact us for further technical information, dimensions and weight.
Dimensions and Technical Data – Technical alterations are subject to change – Exact mounting dimensions should be obtained.
