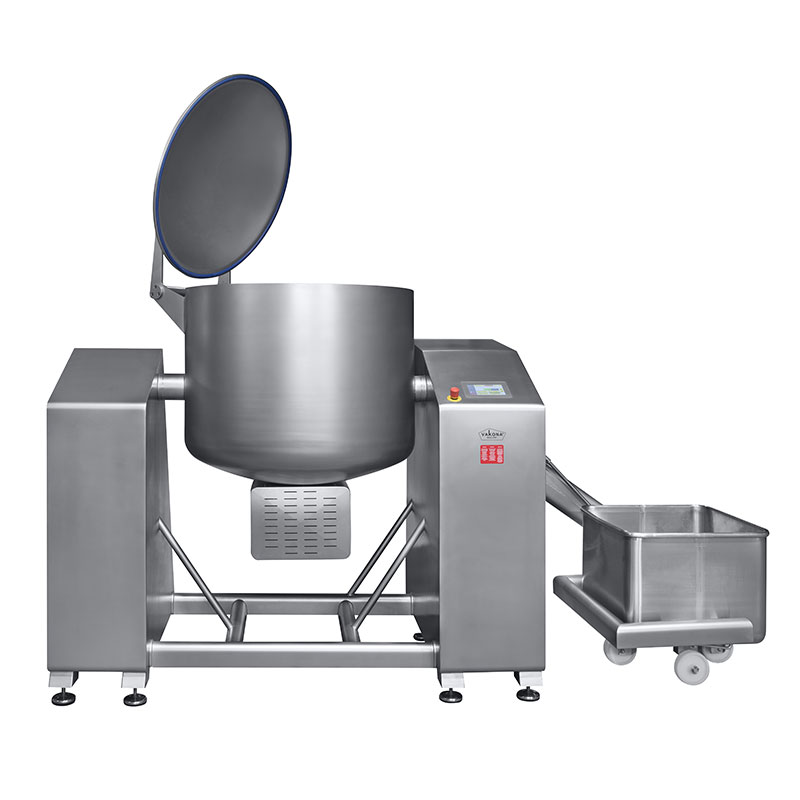

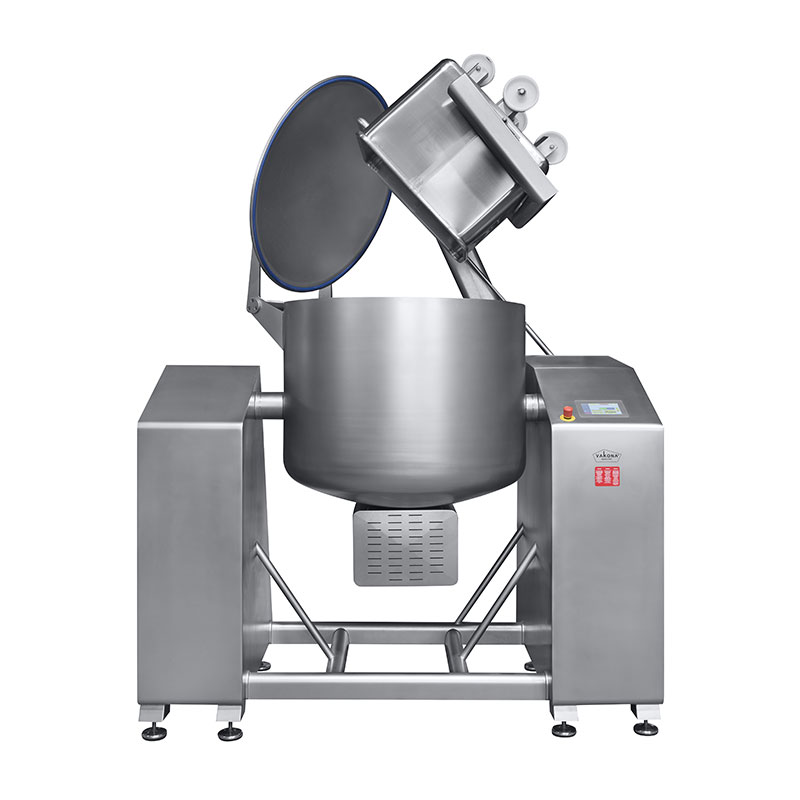

Energy saving cooling tumbler ESK® 550–850 STL
VAKONA Energy Saving Cooling Tumblers are designed for the operation in the food industry, especially for the field of meat, poultry and fish processing. They are suited for the massing, mixing, massaging, marinating and tumbling of all kind of meat-, poultry and fish products.
The machines captivate with a high user friendliness which is achieved by a plain handling and easy cleaning. A high individualization of the machines is reached by a wide range of equipment options, in order to achieve the highest possible degree of customer-specific product optimization.
- Bowl, machine cabinet and frame made from stainless steel
- Touch screen control unit for automatic and manual operation
- Memory for up to 99 recipes with free adjustable parameters: total-, working- and pause time, rotation speed, temperature, vacuum level, aeration intervals, bowl angle position and automatic bowl sway mode.
- Rotation speed of the tumbling arm variable adjustable from 3-18 rpm
- Direct cooling system with powerful cooling aggregate and heat exchanger in double jacket bowl, made from stainless steel
- Vacuum system including high performance vacuum pump, automatic and programmable aeration cycles, aseptic filter for sterilization of aeration air, hygienic automatic water separator
- Electrical, infinitely variable tilting of the bowl for emptying of the machine
- Electrical lid operation
- Stainless steel tumbling arm, including scraper with press-button-system
- Tool for scraper fixing
- 3-N-PE, 400 V, 50 Hz, 16 A (ab ESK 1200 = 32 A)
- Bowl volume:
- Capacity: approx. (depending on product)
|ESK 100 STL||100 L||10 – 70 kg|
|ESK 150 STL||150 L||10 – 110 kg|
|ESK 220 STL||220 L||25 – 160 kg|
|ESK 250 STL||250 L||25 – 180 kg|
|ESK 300 STL||300 L||25 – 210 kg|
|ESK 400 STL||400 L||25 – 280 kg|
|ESK 550 STL||550 L||50 – 385 kg|
|ESK 850 STL||850 L||50 – 600 kg|
|ESK 1200 STL||1200 L||100 – 950 kg|
|ESK 1500 STL||1500 L||150 – 1150 kg|
|Due to the versatile optional equipment, the machine pictures shown may contain deviations. If you have questions, please contact us.|
dimensions / weight
Attention: All given data are guide values, depending on the product.
Due to the high versatility of optional equipment and modification of the VAKONA energy saving cooling tumbler, please contact us for further technical information, dimensions and weight.
Dimensions and Technical Data – Technical alterations are subject to change – Exact mounting dimensions should be obtained.
