Pickle injector
PI 26 V

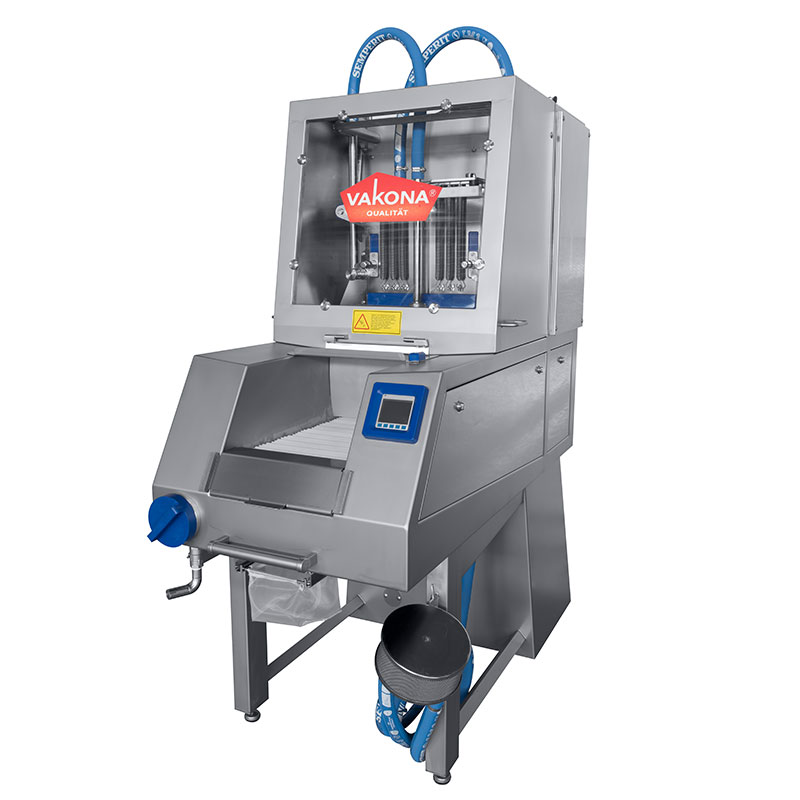

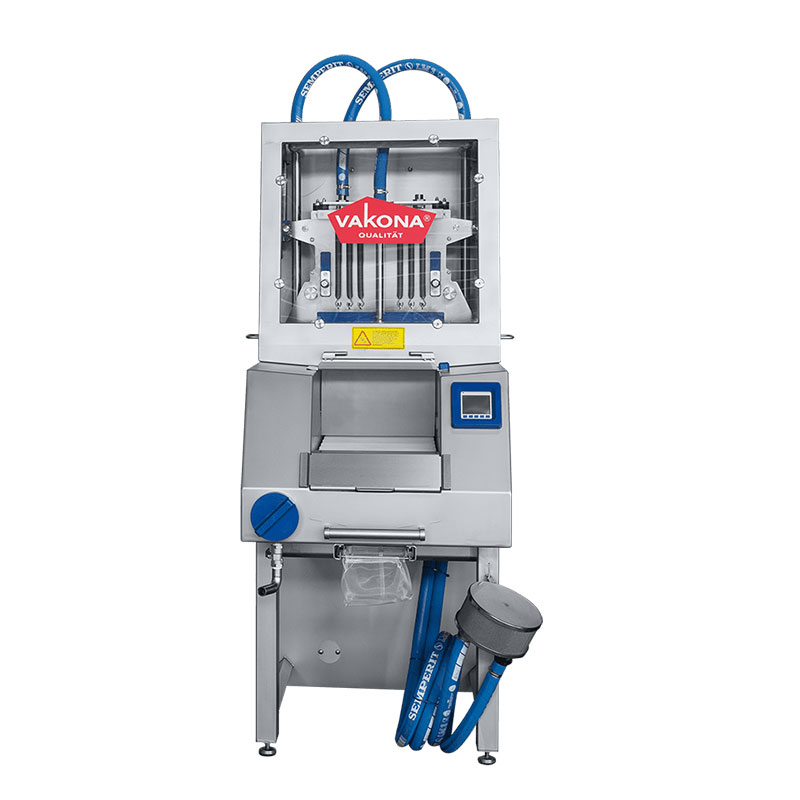

Pickle injector PI 26 V
The automatic brine injectors are specially designed
for the requirements of the craft and SMBs.
for the requirements of the craft and SMBs.
Their outstanding features are:
- Rugged construction
- Compact design
- High injection accuracy
- Easy operation
- Easy to maintain
- High flexibility
- Easy to clean
Standard equipment:
- Direct mechanical drive for needle head and belt above the pickling compartment
- Precision needle heads with quick-change needle bridge system
- Mechanical suspension of each needle for products with bones
- Complete separation of the entire pumping cycle from all electromechanical components
- Standard stainless steel centrifugal pump
- Product-related pump selection
- Pre-filter system
- Special conveyor belt made of polyethylene, easy to remove
- Injection pattern can be varied by mechanically changing the conveyor belt feed settings
- Additional controller for infinitely variable control of process parameters and 20 program locations for recipe management
- Injection pattern can be selected via controller
- With an additional independent belt drive
Optional equipment:
- semi-automatic filter system VHF
- H version for fish and poultry
- steaker knife device for products without bones
- manual injection connection
Dimensions and technical data of the pickle injector PI
PI 17 V | PI 21 V | PI 26 V | PI 51 V | |
---|---|---|---|---|
Injection needles | 17 | 21 | 26 | 52 |
Length | 1400 mm | 1400 mm | 1600 mm | 1600 mm |
Width | 560 mm | 700 mm | 800 mm | 800 mm |
Height | 1750 mm | 1760 mm | 1850 mm | 1850 mm |
Length of conveyor belt | 1150 mm | 1100 mm | 1250 mm | 1250 mm |
Length of conveyor belt | 265 mm | 280 mm | 345 mm | 345 mm |
Max. product clearance | 180 mm | 210 mm optional 240 mm | 210 mm optional 240 mm | 210 mm |
Working height | 820 mm | 780 mm | 930 mm | 930 mm |
Connected load | 1,5 kW | 1,5 kW | 2,2 kW | 2,2 kW |
Weight | 290 kg | 320 kg | 450 kg | 480 kg |
Due to the versatile optional equipment, the machine pictures shown may contain deviations. If you have questions, please contact us. |
Dimensions and Technical Data – Technical alterations are subject to change – Exact mounting dimensions should be obtained
