Pickle injector
PI 81-184

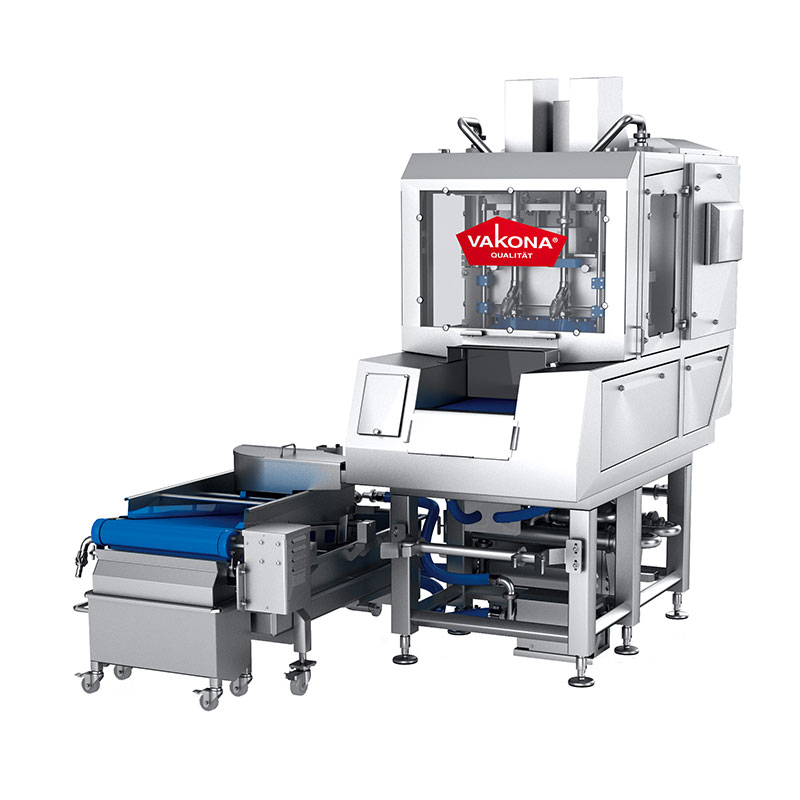

Pickle injector PI 81-184
The automatic brine injectors are specially designed for the requirements of the industry.
Their outstanding features are:
- Rugged construction
- Compact design
- High injection accuracy
- Easy operation
- Easy to maintain
- High flexibility
- Easy to clean
Standard equipment:
- Easy operation and ergonomic industrial design
- Direct drive via servo technology
- Precision needle heads with quick change (release) needle-bridge-system
- Complete separation of pump cycle from all electromechanic components
- Product related pump selection
- Pre-filter system electronically supervised
- Automatic rotary filter units
- Process parameters infinitely variable
- Special conveyor from polyethylene, easy to remove for sanitation
- touch-screen control with:
- 100 memory spaces for recipe storage
- Infinitely variable stroke height selection
- Number of strokes up to 50 st/min
- Automatic stand by mode for needle head and brine circulation
- Highest injection precision supported by position controlled brine valve
- Injection pattern variable via automatic belt positioning
- Automatic sanitation programUSB/Ethernet and CAN-Bus standard
- Optional dynamic stroke modeIndividual pneumatic tension control
All process data and functions are handled via touch screen operator panel.
Dimensions and technical data of the pickle injector PI
| PI 54 | PI 75 | PI 105 | PI 81 | PI 124 | PI 184 | |
|---|---|---|---|---|---|---|
| Injection needles | 54 | 75 | 105 | 81 | 124 | 184 |
| Length | 1750 mm | 1750 mm | 1750 mm | 2250 mm | 2250 mm | 2250 mm |
| Width | 860 mm | 860 mm | 860 mm | 1120 mm | 1120 mm | |
| Height | 2200 mm | 2200 mm | 2200 mm | 2400 mm | 2400 mm | 2400 mm |
| Length of conveyor belt | 365 mm | 365 mm | 365 mm | 480 mm | 480 mm | 480 mm |
| Length of conveyor belt | 74/37/24,5 mm | 74/37/24,5 mm | 74/37/24,5 mm | 90/45/30 mm | 90/45/30 mm | 90/45/30 mm |
| Max. product clearance | 220 mm | 220 mm | 220 mm | 220 mm | 220 mm | 220 mm |
| Working height | 1130 mm | 1130 mm | 1130 mm | 1150 mm | 1150 mm | 1150 mm |
| Connected load | 7,0 kW | 7,0 kW | 7,0 kW | 14,5 kW | 14,5 kW | 14,5 kW |
| Due to the versatile optional equipment, the machine pictures shown may contain deviations. If you have questions, please contact us. | ||||||
