Pickle injector

PI 52 V

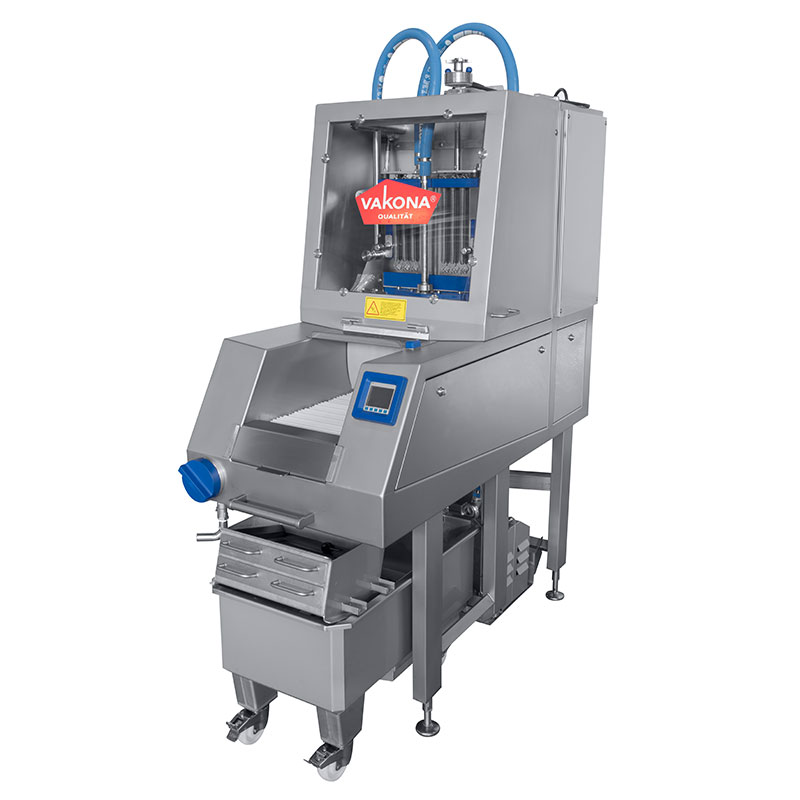

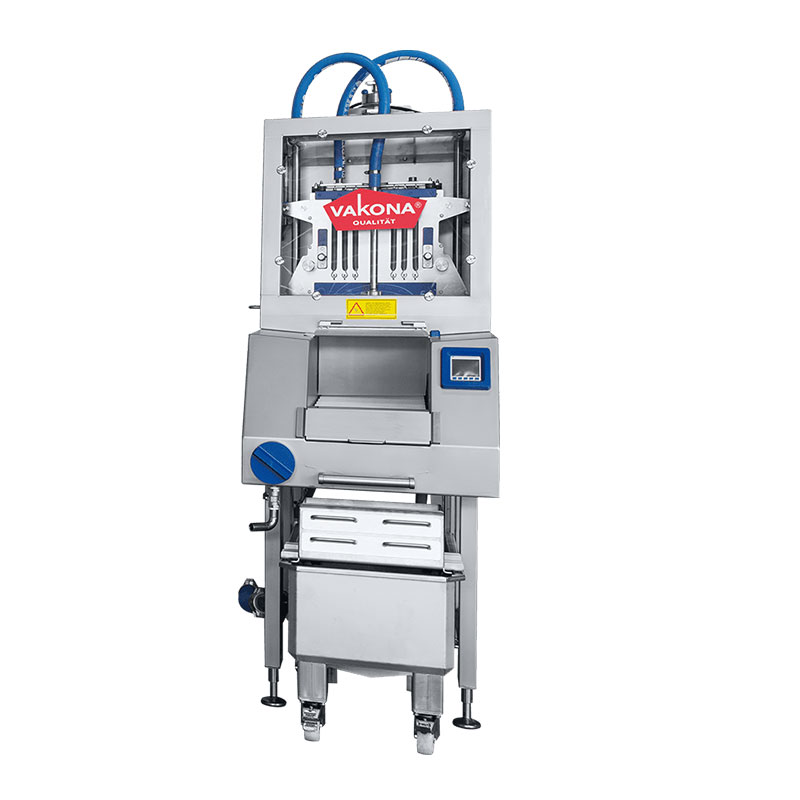

Pickle injector PI 52 V

The automatic brine injectors are specially designed
for the requirements of the craft and SMBs.

Their outstanding features are:

  • Rugged construction
  • Compact design
  • High injection accuracy
  • Easy operation
  • Easy to maintain
  • High flexibility
  • Easy to clean
Standard equipment:
  • Direct mechanical drive for needle head and belt above the pickling compartment

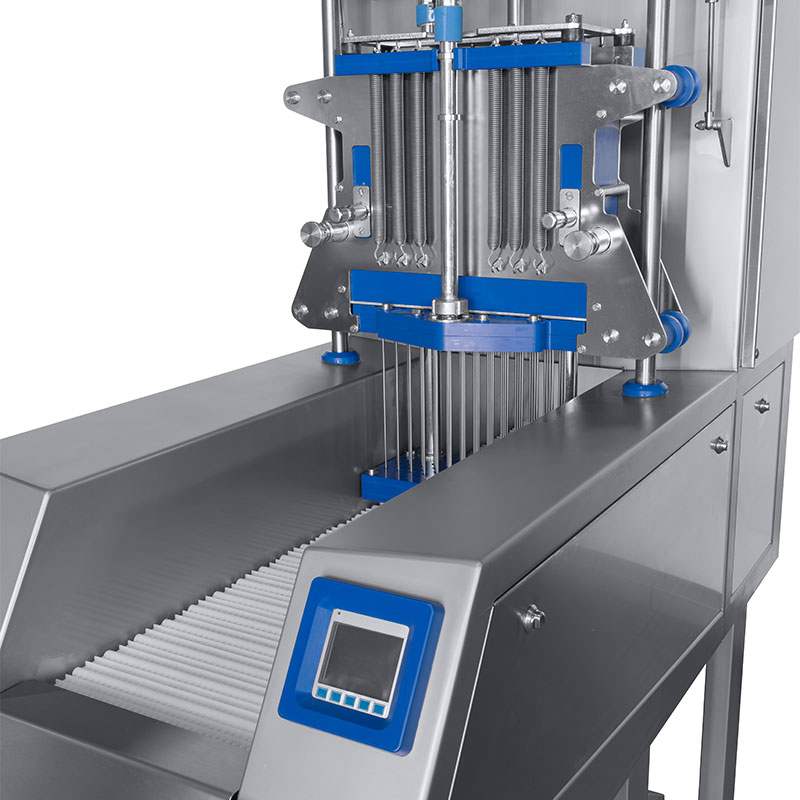

  • Precision needle heads with quick-change needle bridge system
  • Mechanical suspension of each needle for products with bones
  • Complete separation of the entire pumping cycle from all electromechanical components
  • Standard stainless steel centrifugal pump
  • Product-related pump selection
  • Pre-filter system
  • Special conveyor belt made of polyethylene, easy to remove
  • Injection pattern can be varied by mechanically changing the conveyor belt feed settings
  • Additional controller for infinitely variable control of process parameters and 20 program locations for recipe management
  • Injection pattern can be selected via controller
  • With an additional independent belt drive
Optional equipment:
  • semi-automatic filter system VHF
  • H version for fish and poultry
  • steaker knife device for products without bones
  • manual injection connection

Dimensions and technical data of the pickle injector PI

 PI 17 VPI 21 VPI 26 VPI 51 V
Injection needles 17212652
Length1400 mm 1400 mm1600 mm1600 mm
Width560 mm700 mm800 mm800 mm
Height1750 mm1760 mm1850 mm1850 mm
Length of conveyor belt 1150 mm1100 mm1250 mm1250 mm
Length of conveyor belt 265 mm280 mm345 mm345 mm
Max. product clearance180 mm210 mm
optional 240 mm
210 mm
optional 240 mm
210 mm
Working height 820 mm 780 mm930 mm930 mm
Connected load 1,5 kW1,5 kW2,2 kW2,2 kW
Weight290 kg320 kg450 kg480 kg
Due to the versatile optional equipment, the machine pictures shown may contain deviations. If you have questions, please contact us.
Dimensions and Technical Data – Technical alterations are subject to change – Exact mounting dimensions should be obtained

All types of the pickle injector PI
